Specification
| Item | S1V | |||||
| Optical fiber Fiber Requirement | ||||||
| Material | Silica glass | |||||
| Fiber count / Profile types | Single / SMF(G.652), MMF(G.651), DSF(G.653), NZDSF(G.655), BIF(G.657) | |||||
| Fiber diameter | Cladding diameter : 125 m, Coating diameter : 250 ~ 1,000 m | |||||
| Cleave length | 5 to 16mm for single fiber | |||||
| Standard Performance | ||||||
| Splicing Loss(Typical) | SMF : 0.03dB, MMF : 0.01dB, DSF : 0.05dB, NZDSF : 0.05dB | |||||
| Return loss (typical) | 60dB or greater | |||||
| Splice time (typical) | 6sec (SM G652 Quick Mode) | |||||
| Heating time (typical) | 17sec (FPS-61-2.6 sleeve, S60mm 0.25 Mode) | |||||
| Splice & Heat cycles per battery full charge* | Approx. 250 (BU-17) | |||||
| Fiber view & magnification | 2 CMOS cameras observation, 140X (zoom 370X) for X and Y axis view | |||||
| Proof test | 1.96 ~ 2.09N | |||||
| Applicable protection sleeve | 60mm, 40mm & Sumitomo Nano sleeves | |||||
| Programs | ||||||
| Splice programs | Max. 300, 16 are pre-optimised, 284 editable by user | |||||
| Heating programs | Max. 100, 23 are pre-optimised, 77 editable by user | |||||
| Functions | ||||||
| Splice image capture / Splice data storage | 200 images / 10,000 splice data (internal memory only), 50,200 / 20,000 (With 16GB SD card) | |||||
| Auto-start | Splice/Heating | |||||
| Multi clamp | Provided, 250 m, 900 m tight & loose buer fiber, 2 & 3mm jacket cord and rectangular drop cable | |||||
| Heater clamp for splice on connector | 3.5mm round drop cable Provided | |||||
| Automatic arc calibration | Automatically compensates for environmental condition changes | |||||
| Onboard user training video Size | Provided | |||||
| Onboard user training video Size | Provided | |||||
| Size / Weight | ||||||
| 126(W) x 154(D) x 83(H) mm (without protrusion) | ||||||
| Weight | 0.9kg (without Battery), 1.2kg (with Battery BU-17 ) | |||||
| Monitor | 4.3″ color LCD display | |||||
| Terminals | ||||||
| USB port | USB 2.0 (mini-B type) | |||||
| Storage media | SD / SDHC memory card Max 32GB | |||||
| Power supply | ||||||
| AC input | AC 100 ~ 240V, 50/60Hz (ADC-15) | |||||
| DC input | DC 10 ~ 15V | |||||
| Battery pack | Li-ion 10.8V, 4,560mAh (BU-17) | |||||
| Operating condition | ||||||
| Altitude : 0 ~ 5,000m, Temperature : -10 ~ +50°C, Humidity : 0 ~ 95%RH (non-condensing), Wind velocity : up to 15m/sec | ||||||
| Storage condition | ||||||
| Temperature : -40 ~ +80°C, Humidity : 0 ~ 95%RH (non-condensing), Battery : -20 ~ +30°C (long term) | ||||||
| Electrode life | ||||||
| 6,000 arc discharges Internet | ||||||
| Software updates | ||||||
| Can be stored, edited and analyzed by dedicated PC software | ||||||

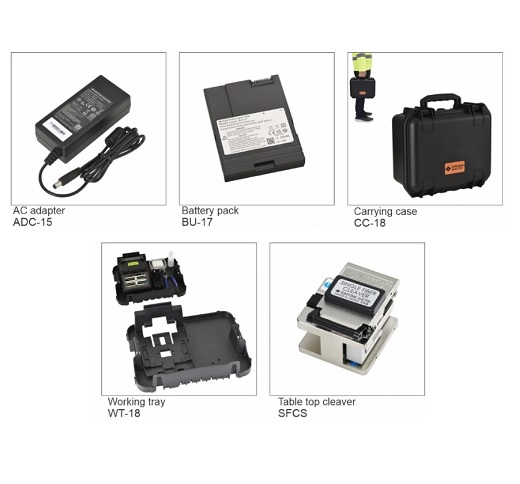

| Accessories for Splicers | ||||||
| Part Name | Part No. | Qty. | ||||
| AC adapter | ADC-15 | 1 pc | ||||
| AC power cord | PC-AC -2P | 1 pc | ||||
| Battery pack | BU-17 | 1 pc | ||||
| Quick reference guide | – | 1 pc | ||||

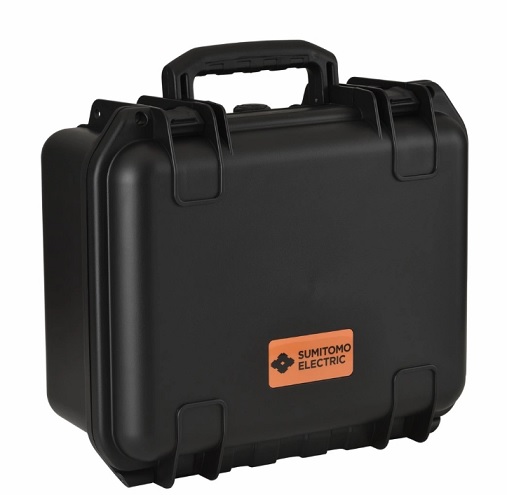

| Carrying case | CC-18 | 1 pc | ||||
| Working tray | WT-18 | 1 pc | ||||
