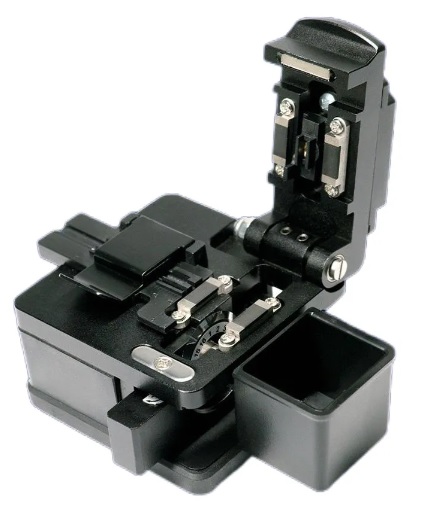

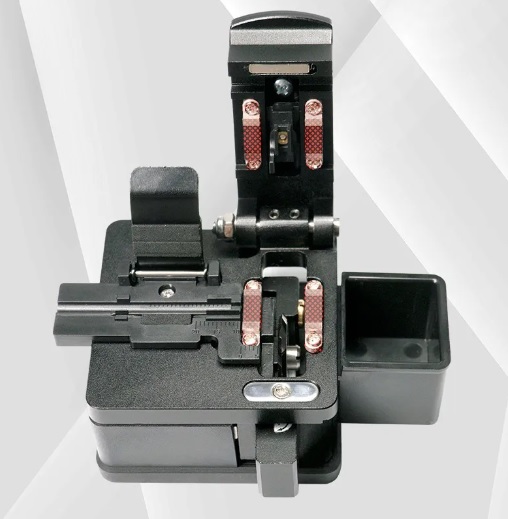

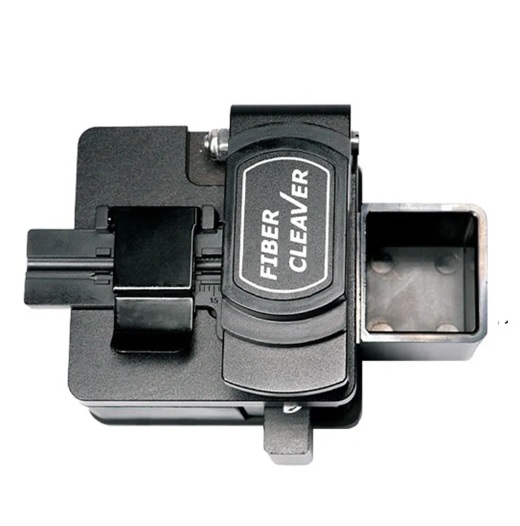

Fiber Optic Cleaver GR 27 High Precision
Original price was: ₹2,180.00.₹2,000.00Current price is: ₹2,000.00.
Product description
- This high precision optical fiber cleaver is used for fiber cutting and especially more focusing on FTTx field.
- The Ultra-fine Tungsten Steel Blade provides up to 48,000 times cleaves by easy and simple 16 blade spots.
- It is installed with fiber holder which is applicable to 0.25mm 0.9mm 3.0mm fibers. It also has an automatic collector for fiber shards and off cuts.
FIBER CLEAVER
MODEL : Fiber Optic Cleaver GR 27 High Precision
- Technical Parameters of fiber cleaver
| Color | Black |
| Material | Auminum alloy |
| Surface treatment | Electrophoresis treatment |
| Coated diameter of suitable fiber | Ø 0.25&0.9 |
| Clad diameter of suitable fiber | 125um |
| Cleaving fiber length | 9-16mm（Ø 0.25） 10-16（Ø 0.9） |
| External appearance size | 60mm（W）X57mm（D）X 46mm（H） |
| Weight | 266g |
| Fiber holder | 3 in 1 , Long |
| Blade Hardness and size | ≥92.5HRa , 22*4*2mm |
| Cleaving angle | ≤1.0° |
| Blade service life | 48000 times |
| Fiber trash can | Yes |

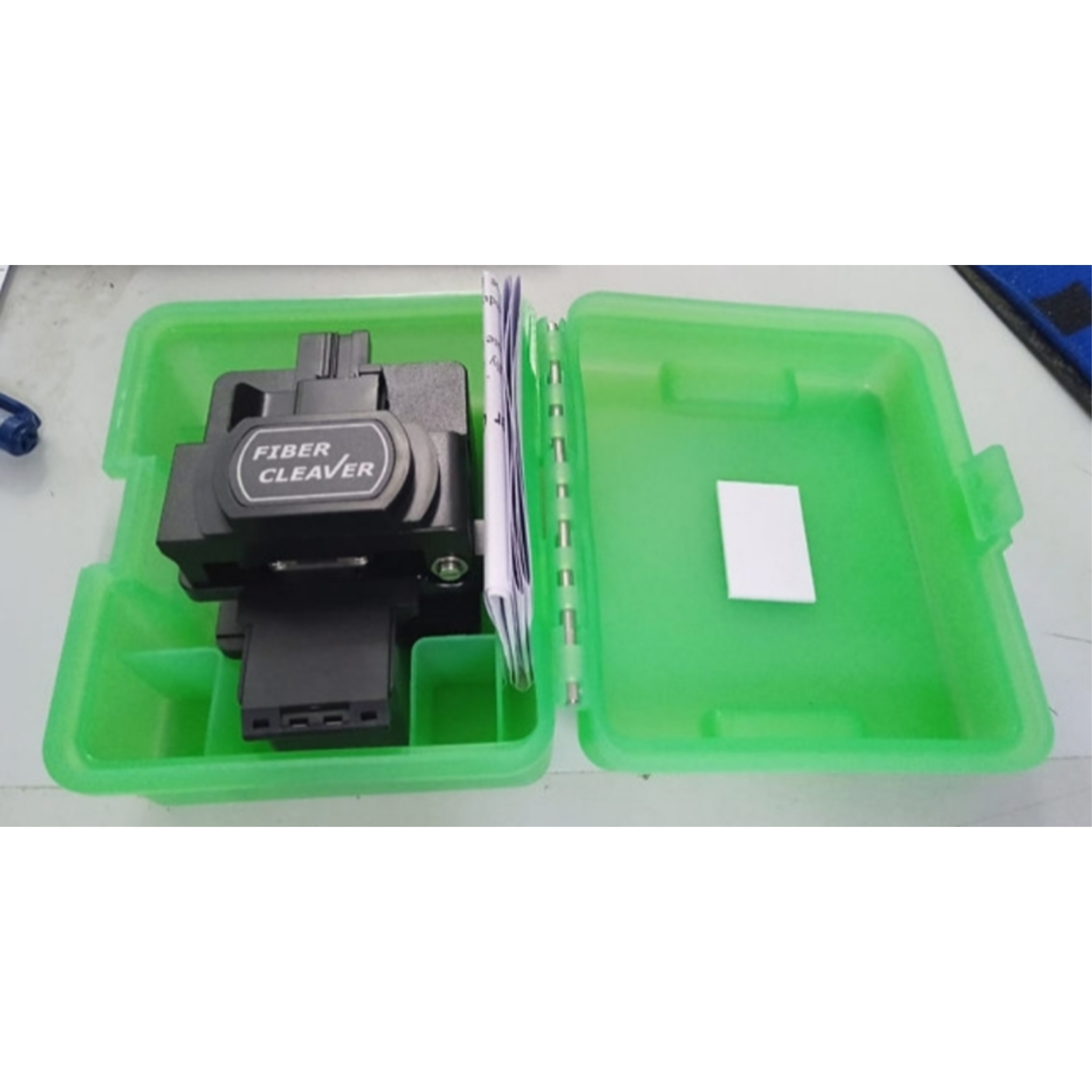

| Packing | Plastic box |
R-27 High Precision Fiber Optic Cleaver
CNC precision machined metal aluminum alloy body.Surface use sandblasted electrophoresis treatment, corrosion-resistant and high lifespan.
The special composition rubber stainless steel pressure pads are resistant to oil, alcohol and abrasion, and are highly stable over long periods of time.
The high precision heat-treated stainless steel slides ensure smooth and fluid when cutting.
The special composition rubber stainless steel pressure pads are resistant to oil, alcohol and abrasion, and are highly stable over long periods of time.
